Cavity Trims

K20, K30, K40, K50, DK60 and K65 8 mm high when fitted, self-adhesive

Trim strips for covering joints between the window frame and wall. With connecting lug extending on to the wall and adhesive tape cover. Cover strip DK60 with two adhesive tapes and adhesive tape cover on both sides, as a visible profile providing a central joint cover.

Acrylate foam tape grade, 1 mm thickness, weather and ageing-resistant, permanently elastic.

Can also be supplied coated with Renolit MBAS wood and single-colour decorative finish.

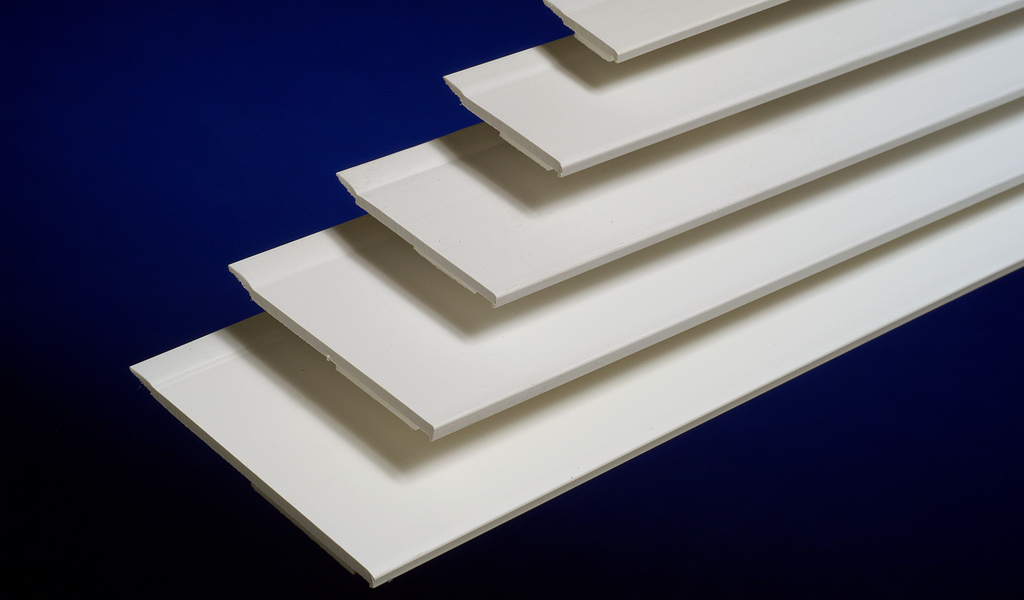

Flat Strips with sealing lip

F20, F30, F40, F50 and F60 3 mm high when fitted, self-adhesive

Flat Strips with lip for covering the joint between the window frame and wall, for use in drywall construction, interior fittings for connection to the wall. With soft lip extending on to the wall and adhesive tape cover for the adhesive tape.

Acrylate foam tape grade, 1 mm thickness, weather and ageing-resistant, permanently elastic.

Can also be supplied coated with Renolit MBAS wood and single-colour decorative finish. Decorative wood profiles with soft lip in matching colour.

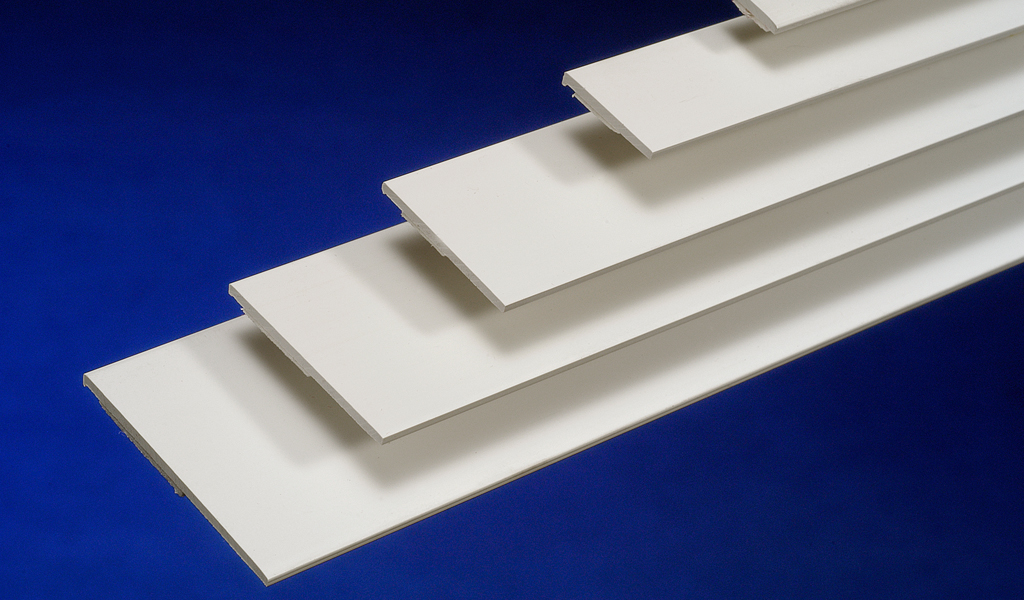

Flat Strips without sealing lip, self-adhesive

F15, F25, F35, F35 and F55 3 mm high when fitted, self-adhesive

Flat Strips for covering the joint between the window frame and wall, for use in drywall construction, interior fittings for wall connection. With adhesive tape cover on the interior for adhesive tape.

Acrylate foam tape grade, 1 mm thickness, weather and ageing-resistant, permanently elastic.

Coated with Renolit MBAS on request.

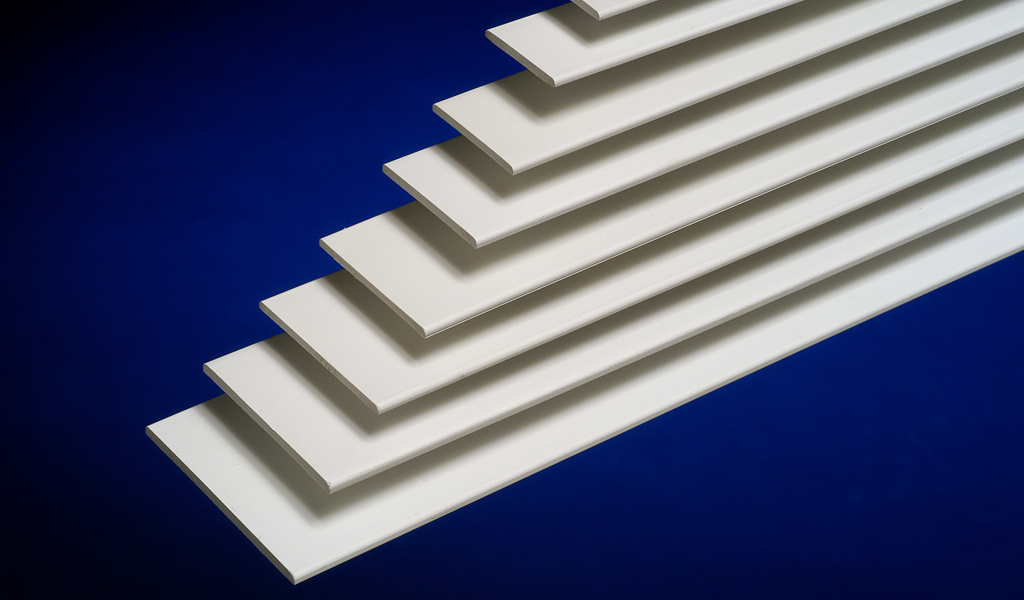

Flat Strips without sealing lips, without adhesive tape

F2/20, F2/25, F2/30, F2/35, F2/40, F2/45, F3/50, F3/60 2 mm or 3 mm high when fitted

Assembly and cladding profile as joint covering for wall connection or as a visible profile providing a central joint cover. Fastening/assembly on window frames with compatible adhesives. Profiles can be upgraded with 1 or 2 pieces of acrylate film adhesive tape, 0.2 mm thick. Coated with Renolit MBAS on request.

Profiles for Reveal Panels

U10 und F10/65

By inserting a 10 mm thick covering panel in the pre-assembled, self-adhesive or screwed U10 profile on the window frame, damaged niches in walls can be covered up following the installation of replacement windows. The F10/65 profile can be bonded in position to neaten the wall corner.

The F10/65 profile is PVC window grade and can also be used to create a frame (e.g. for loft ladder openings).

Window Profiles with Decorative Coating

Renolit MBAS and Cova film, weather and ageing-resistant, wood and single-colour decorative finishes, glazing bars – black sealing lip, flat strips – coloured sealing lip.

Call to check stock availability.



Overview of the decors
